Why Dianhydride Selection Matters for Polyimide Varnishes…
…and how substrate packaging can benefit from better formulating choices.

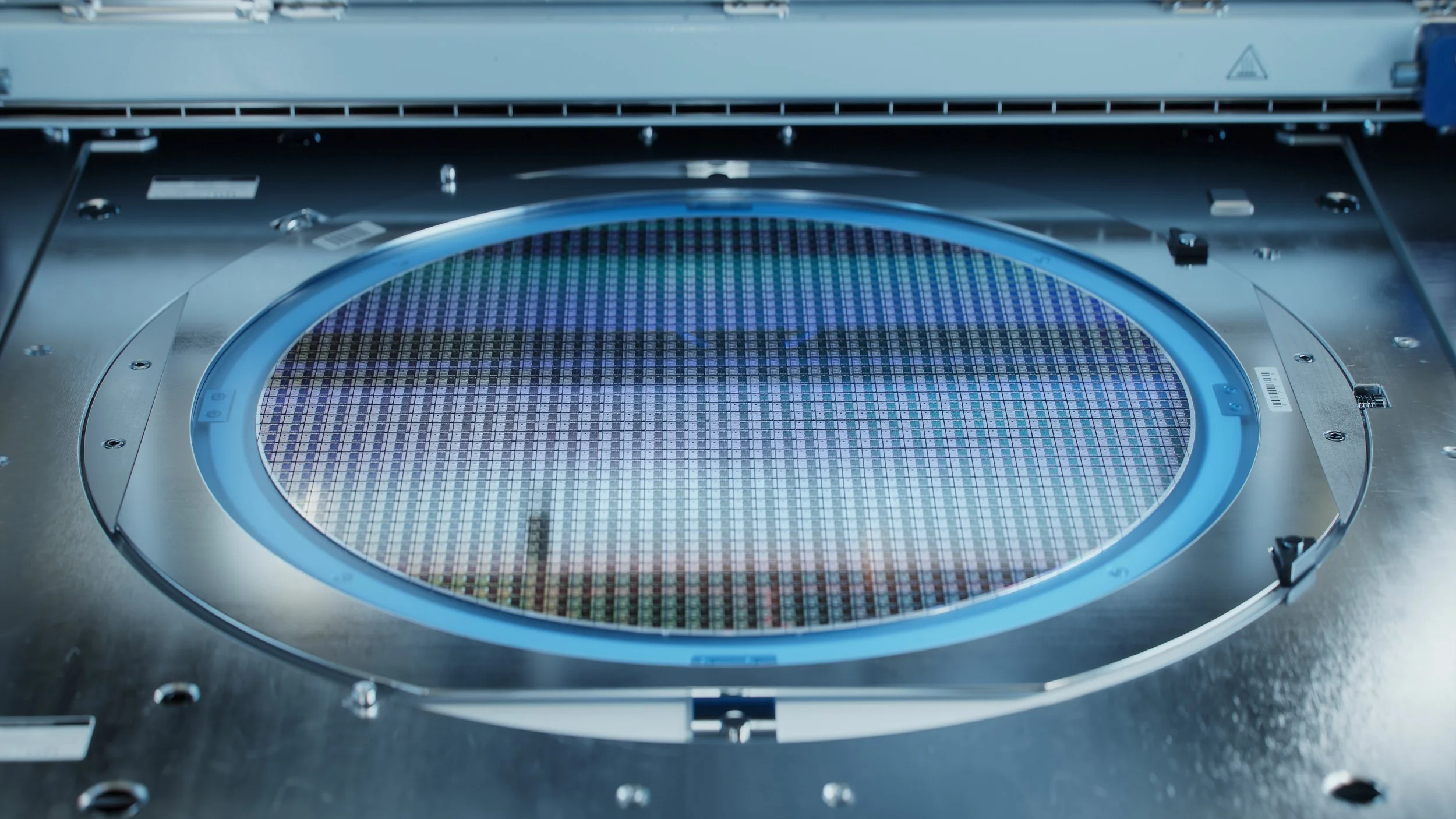

Image: Shutterstock
Dianhydride co-monomer selection is one of the main formulating “knobs” for balancing processability, thermo‑mechanical and electrical behavior in polyimide varnishes for substrate packaging. Requirements include a low coefficient of thermal expansion (CTE), high glass transition temperature (Tg), manageable modulus (E), and tunable dielectric constant (k), all in very thin layers. Let’s review dianhydride options with an eye toward the above design criteria[1, 2, 3, 4].
Pyromellitic dianhydride (PMDA) sits at the extreme end of rigidity, while Biphenyl tetracarboxylic dianhydride (BPDA) is stiff but noticeably more forgiving. PMDA‑based polyimides tend to provide the most compact, tightly packed chains for a given diamine, meaning very high Tg, high E, and strong CTE suppression, along with relatively high k, with a tendency toward brittleness and tough processing. While BPDA builds a linear, aromatic backbone, the biphenyl functionality introduces more conformational freedom, resulting in a modest drop in rigidity and modulus, with a corresponding gain in toughness and strain‑to‑break compared to the PMDA analog. In substrate packaging terms, BPDA‑based polyimide varnishes offer excellent thermal stability and CTE control, but with slightly more movement and warpage management[1, 2, 4, 5].
Benzophenone tetracarboxylic dianhydride (BTDA) and Oxydiphthalic dianhydride (ODPA) reside on a mid‑rigidity level and trade stiffness for processability and toughness. BTDA’s carbonyl group kinks the chain, which disrupts packing enough to improve toughness and solubility while keeping the backbone largely aromatic and high in Tg. Compared to PMDA and BPDA, BTDA‑based polyimides offer simpler processing with lower E and CTE. ODPA’s ether linkage softens the chain and boosts solubility while retaining aromatic content. ODPA-based polyimides are known for good film formation, Tg, and flexibility relative to BPDA‑based analogues. For varnishes, both BTDA and ODPA typically enable higher solids coatings with more forgiving cure profiles on rough topography, attractive for build‑up dielectrics, stress‑relief layers, and redistribution layer (RDL) dielectrics exposed to heavy thermal cycling[1, 2, 4, 5, 6].
6FDA and BPADA push the design toward high‑frequency and thicker build‑up layers. 6FDA brings bulky side groups and a hexafluoroisopropylidene bridge, increasing free volume and reducing interchain cohesion. 6FDA‑based polyimides typically enable lower k and higher solubility than BTDA, ODPA, BPDA, or PMDA analogs, at the cost of lower E and higher CTE. BPADA’s isopropylidene‑bridged structure similarly enables chain mobility and free volume, good for solution processability. 6FDA and BPADA-based polyimides can be formulated with select diamines or stiffer dianhydrides as offsets for low CTE, high E, and tighter warpage control[1, 3, 4, 7, 8].
To summarize, dianhydride selection involves blending rigidity and free volume along a clear gradient: PMDA for maximum rigidity and thermal resistance; BPDA for a stiff, high‑performance framework with a bit more flexibility and toughness; BTDA or ODPA in the mid-range, for better toughness and processing; and 6FDA or BPADA when low k, high free volume, and strong solubility drive the design. Formulators must treat these dianhydrides as structural levers, not interchangeable co-monomers, dialing in backbone linearity, polarity, and bulk to juggle shrinkage, warpage, copper adhesion, and high‑frequency signal integrity in increasingly thin, crowded substrate stacks[1, 2, 3, 4, 6, 9].
